Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Condition: |
New |
After-sales Service: |
One Year |
Lifting Weight: |
400kg, 600kg, 800kg |
Transport Package: |
Film Protection |
Specification: |
4000*2000*16mm |
Trademark: |
Fssida |
Origin: |
Foshan |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |

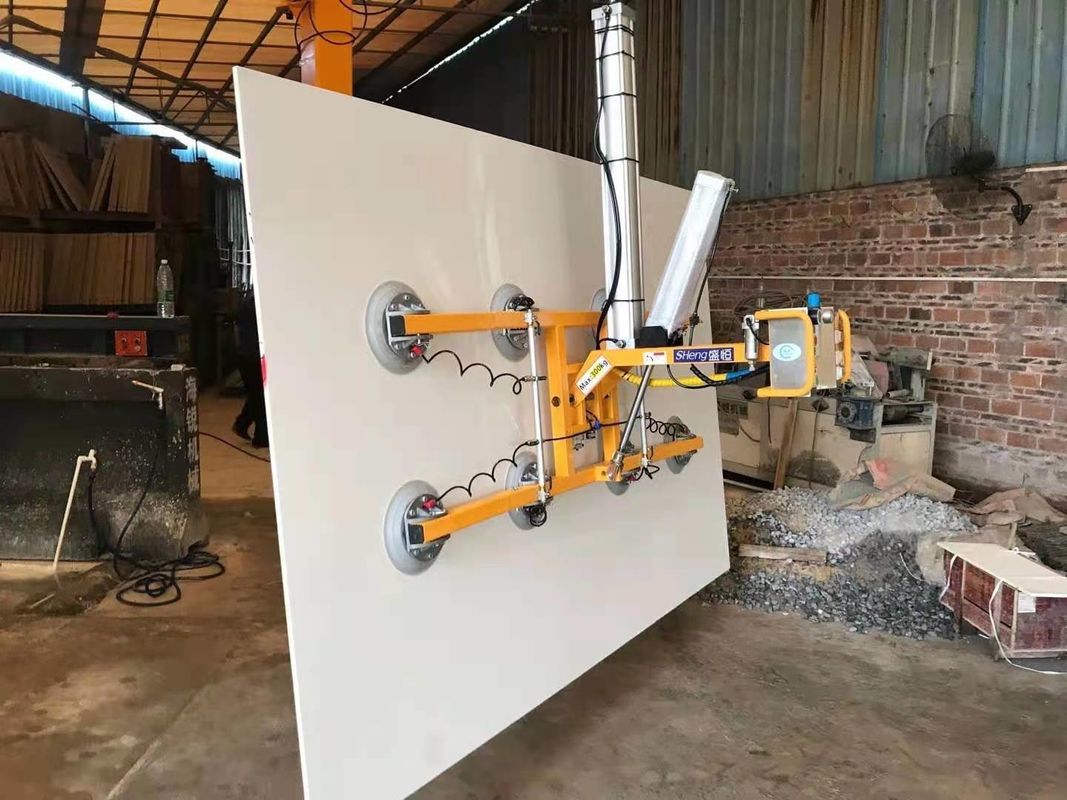

Glass Lifting Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Vertical |
Control System: |
PLC |
Glass Washing Machine Type: |
Glass Lifting Machine |
Customization: |
Available | Customized Request |
Condition: |
New |
After-sales Service: |
One Year |
Lifting Weight: |
400kg, 600kg, 800kg |
Transport Package: |
Film Protection |
Specification: |
4000*2000*16mm |
Trademark: |
Fssida |
Origin: |
Foshan |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Lifting Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Vertical |
Control System: |
PLC |
Glass Washing Machine Type: |
Glass Lifting Machine |
Customization: |
Available | Customized Request |
| Work piece Detail | Design Basis |
| Work piece character | Flat glass |
| Work piece size& weight | (4000mm)(L)x(2000mm)(W)x(8+8mm)(H),Max weight about 600kg |
| Handling way | Vertical/Horizontal displacement handling |
| Operating circumstance | Outside handling, Demand no less than 6 kg air source and need crane hoisting equipment. |
| Max overhang"L" | According to 16 mm thick piecework, The biggest overhang quantity "L" should be less than or equal to 1170 mm |
| Project content | Performance indicators |
| Rated load | 800kg glass can horizontal & vertical displacement handling (under the condition of 60% vacuum pressure) |
| Safety factor | 4 times,passed ISO9001 system testify:2008; Comply with European CE safety regulations |
| Safety alarm | System vacuum pressure lower than 60%, can be observed through numerical meter about pressure values |
| Pressure holding time | Cut off air supply, the time required is greater than or equal to 10 min. Of system vacuum pressure drop by the supreme to 60% |
| Suction & Release Control | Two position & three links manually slide valve |
| Noise index | Less than 60dB(A) |
| Lifting part's weight | 70kg(similar) |
