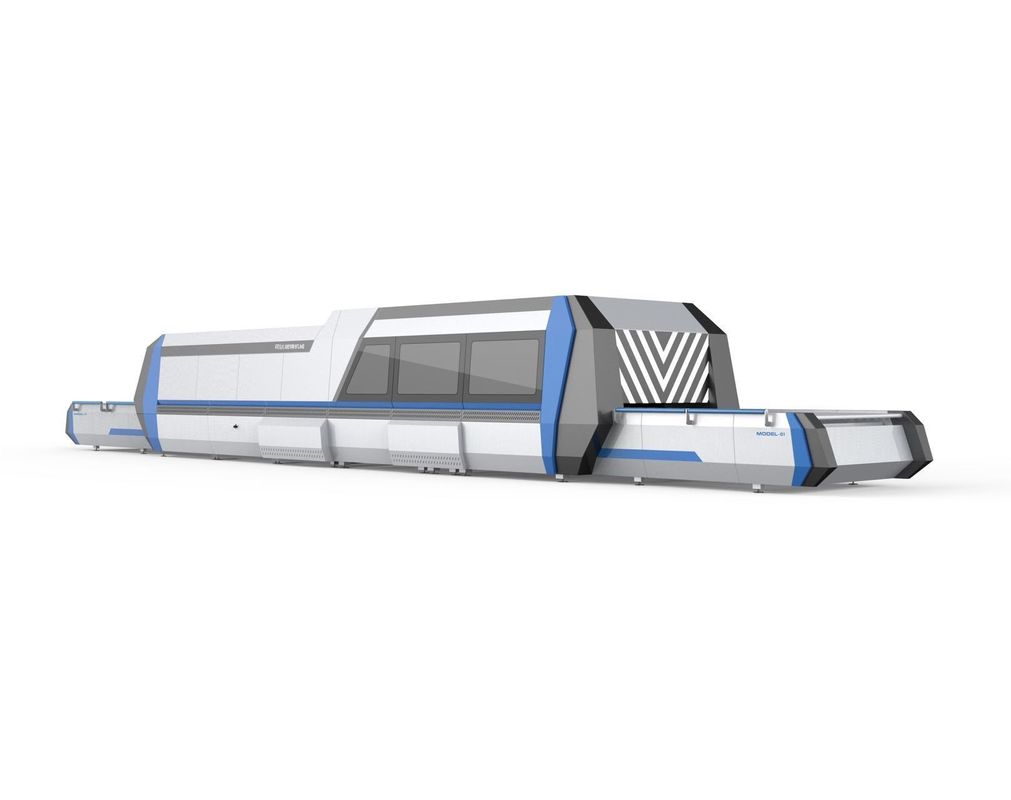

Experience Superior Glass Processing with Vortex Convection Glass Tempering Furnace

Name: Experience Superior Glass Processing with Vortex Convection Glass Tempering Furnace
Brand: Experience Superior Glass Processing with Vortex Convection Glass Tempering Furnace
SKU: Experience Superior Glass Processing with Vortex Convection Glass Tempering Furnace
Rating: 5 (198 reviews)

Product Details

Place of Origin: China

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	STG-AQ2436-4B	Glass Edging Machine Type:	No
Grinding Head Number:	No	Condition:	New
After-sales Service:	One Year	Transport Package:	Protective Film
Trademark:	Fssida	Origin:	China
HS Code:	8464201000	Supply Ability:	100sets/Month
Warranty:	One Year	Type:	Glass Tempering Furnace
Certification:	CE	Structure:	Horizontal
Control System:	PLC	Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Model NO.:	STG-AQ2436-4B
Glass Edging Machine Type:	No
Grinding Head Number:	No
Condition:	New
After-sales Service:	One Year
Transport Package:	Protective Film
Trademark:	Fssida
Origin:	China
HS Code:	8464201000
Supply Ability:	100sets/Month
Warranty:	One Year
Type:	Glass Tempering Furnace
Certification:	CE
Structure:	Horizontal
Control System:	PLC
Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Experience Superior Glass Processing with Vortex Convection Glass Tempering Furnace

Description of the Equipment

1.1 Brief introduction

The furnace includes loading table, heating, quenching and cooling section, unloading table, and control system. It is used to manufacture flat tempered glass for furniture, home appliance, architecture glass, etc.

1.2 Loading Table

The loading table is composed of rubber-covered rollers and Kevlar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the furnace where it will be in ready-to-enter-furnace position and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.

1.3 Heating Section

The structure of the heating section is of a double-layer box type covered with thermos-insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this section. The upper layer radiation plate is special heat resistant and anti-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramic part, it's easy to replace. When the glass is going to enter the furnace, the front door of the heating section opens the rolls of the loading table and heating section move at the same time. When the glass is in the furnace, the front door will close and the glass on the rollers will be moved back and forth at the distance calculated by the controlling system automatically, so that the glass will be heated evenly. The upper section can be lifted up for maintenance. The heating elements are in matrix layout.

1.4 Flat Quenching/Cooling Section

The alloy sections and steel sheet is cold riveted to avoid deformation of heat welding, ensure effectively the entire flatness at air face of quench. Rational nozzle aperture and arrangement of air hole guarantee the glass even cooling. The upper and lower quenches are combined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flatness of tempering glass.

1.5 Forced convection heating system

Balance tube made by air tube of convection heating system with leptospira model. The convection air comes from compressor to spray hot air into the surface of the soft coat Low-E glass; under the production working process, the heating chamber is combed with both forced convection and radiation. In any case when you expect to process Low glass(both soft and hard coat), you could switch on the compressor control and when you only intend to process clear float glass you can only adopt radiation for processing.

1.6 Unloading Table

The unloading table is the similar as the loading table. When the glass is transported to the end of the conveyor, the rollers will stop, and the glass can be taken away by hand, or by robot, if there is available at the customer's factory.

1.7 Control System
1)Technical Parts
2) Supply Scope

--Loading table
--Heating section(furnace) with top fan convection system
--Quenching and Cooling section
--Unloading table
--Blower system
--Control system

3) Technical Specifications

Model	STG-A2442-5
Flat Glass size	Max loading area	2440 x 4220mm
	Glass thickness range	5 -19mm
	Max glass size	2440 x 4220mm 5-19mm glass
	Min Glass size	400x400mm
Recommended transformer capacity	≥680KVA
Blower Control	controlled by frequency inverters
Quality Standard	ANSI Z97.1-2004,
Finished product rate	≥ 98%
Installation period (approximately,)	15 working days
Commissioning period (approximately)	7 working days
Training period (approximately)	1 ( one ) working week
Guarantee period	ONE year for non worn-out parts and components.
Power supplier mode	380 V + 50 HZ

Power consumption
Flat: ≤3.5 kwh/M²(5mm glass)

Productivity :

Glass thickness (mm)	Glass tempered cycle. (Load/hour)	Note
4(half tempering)	20-22	The size, producing area and color of glass panel will cause the production difference. The production of glass plate with small size and deep color will be slightly larger.
5	16-18
6	14-16
8	10-12
10	9-10
12	7-8
15	5-6
19	3-4

Suitable glass sorts

1.Tinted glass
2.Patterned glass

3.Silk screen printing glass

4.Clear float glass
