Low Consumption Glass Tempering Furnace Machine Customized to Your Specifications

Name: Low Consumption Glass Tempering Furnace Machine Customized to Your Specifications
Brand: Low Consumption Glass Tempering Furnace Machine Customized to Your Specifications
SKU: Low Consumption Glass Tempering Furnace Machine Customized to Your Specifications
Rating: 4.6 (146 reviews)

Product Details

Place of Origin: China

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Product Details

Product Description

Highlight:

After-sales Service:	One Year	Glass Thickness Range:	5-19mm
Min Glass Size:	300*450mm	Transform Capacity:	800 KVA
Max Glass Size:	3000*5000 Mm	Transport Package:	Protective Film
Specification:	3000*6000 Mm	Trademark:	Fssida
Origin:	Foshan	HS Code:	8475291900
Supply Ability:	2 Sets/Mouth	Warranty:	One Year
Type:	Glass Tempering Furnace	Certification:	CE
Structure:	Horizontal	Control System:	Industrial Computer
Condition:	New	Customization:	Available \| Customized Request

After-sales Service:	One Year
Glass Thickness Range:	5-19mm
Min Glass Size:	300*450mm
Transform Capacity:	800 KVA
Max Glass Size:	3000*5000 Mm
Transport Package:	Protective Film
Specification:	3000*6000 Mm
Trademark:	Fssida
Origin:	Foshan
HS Code:	8475291900
Supply Ability:	2 Sets/Mouth
Warranty:	One Year
Type:	Glass Tempering Furnace
Certification:	CE
Structure:	Horizontal
Control System:	Industrial Computer
Condition:	New
Customization:	Available \| Customized Request

Low Consumption Glass Tempering Furnace Machine Customized to Your Specifications

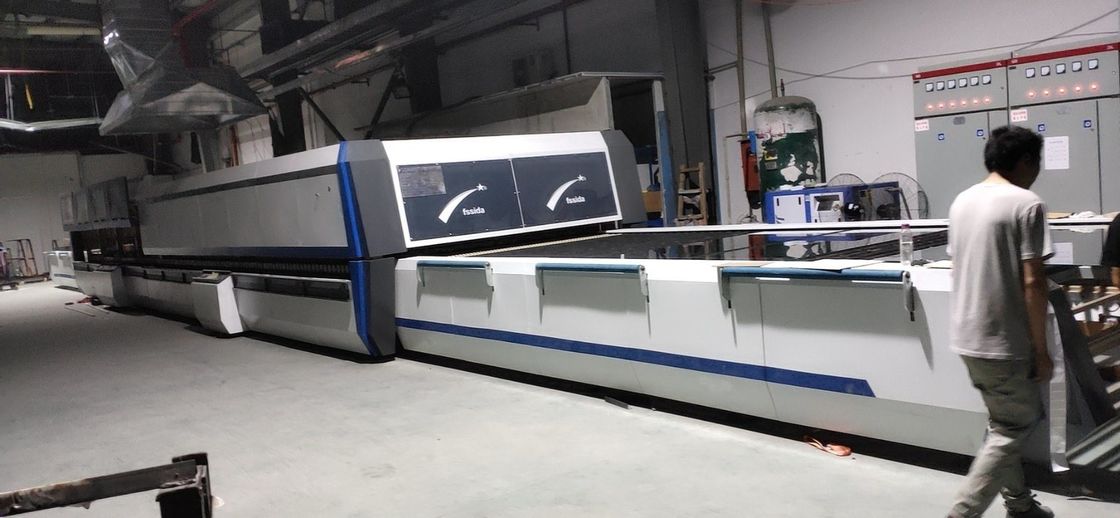

The furnace includes loading table, heating section , quenching and cooling section, unloading table, and control system. It is used to manufacture flat tempered glass for furniture, home appliance, architecture glass, etc.

Low Consumption Glass Tempering Furnace Machine

Loading Table
The loading table is composed of rubber-covered rollers and Keviar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the turnace where it will be in ready-to-enter-turnace postion and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.

Heating Section
The structure of the heating section is of a double-layer box type covered with themmos-Insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this secion. The upper layer radiation plate is special heat resistant and ant-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramio part. it's easy to replace. When the glass is going to enter the furnace, the front door of the heatna section opens the rolls of the loadino table and heatna section move at the same time.

Flat Quenching/Gooling Section
The alloy sections and steal sheet is cold riveted to avoid deformation of heat welding, ensure effecttvely the entire flat at air face of quench. Rational nozzie aperture and arrangement of air hole guarantee the glass even coding. The upper and lower quenches are comblined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flat of tempering glass.

Tinted glass

Patterned glass

Silk screen printing glass

Clear float glass

Item
Max. loading area	1220*2500mm
Glass thickness range	5-19mm
Max.glass size	1220*2500mm
Min.glass size	100*300mm
Recommended transformer capacity	≥315kva

Low Consumption Glass Tempering Furnace Machine

Foshan Star Glass Machinery Co.,Ltd

Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized in design, manufacture, selling, after sales service and maintenance. Our products include glass straight-line edger machine, glass straight-line beveling machine,glass drilling machine glass tempering machine etc. These machines have been widely used in various fields such as construction, furniture, art craft, KTV and wall decoration, etc. Having worked in this field for more than 20 years, our engineers are qualified with rich experience and technical skills. Fssida persists in the principle of "surviving on quality and developing on innovation".

Low Consumption Glass Tempering Furnace Machine 1. One year guarantee for the machine,except the consumable parts.
2. 24 hours technical support by e-mail/Online chatting app.
3. English control page, manual and detailed operation Videos.

Q:what about instullation?will youb send engineer?
A:before the epidemic,we generally dispached engineers. we can't send engineer to orther country affected by the epidemic.in view of this cuurent international situation,we also made many adjustments.for example,all installatiion anddebuugging are done before leaving the factory, and simple and easy to understand installation instructions are provided. coupled with the online remote assistance of engineers,our customers have complete the installation and are using it normally.

Q:How long is the delivery time ?
A: We ship normally, and usually the delivery time of the tempering furnace is within 60-90 working days.

Q:What is the payment ?
A: Any payment method you want,such as L/C, T/T, D/P, West-union and so on.
