Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
ST-13 |
Glass Edging Machine Type: |
Glass Belt Edging Machine |
Grinding Head Number: |
4 |
Condition: |
New |
After-sales Service: |
One Year |
Power: |
2*0.75 Kw |
Voltage: |
380V/50Hz/3phase |
Max Glass Size: |
Less Than 1500mm |
Abrasive Belt Speed: |
39m/Min |
Abrasive Belt Specification: |
L 2000 *W 80 Mm-100 P |
Transport Package: |
Protective Film |
Specification: |
960*600*1360 Mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Horizontal |
Control System: |
PLC |
Glass Washing Machine Type: |
Glass Belt Grinding Machine |
Customization: |
Available | Customized Request |
Model NO.: |
ST-13 |
Glass Edging Machine Type: |
Glass Belt Edging Machine |
Grinding Head Number: |
4 |
Condition: |
New |
After-sales Service: |
One Year |
Power: |
2*0.75 Kw |
Voltage: |
380V/50Hz/3phase |
Max Glass Size: |
Less Than 1500mm |
Abrasive Belt Speed: |
39m/Min |
Abrasive Belt Specification: |
L 2000 *W 80 Mm-100 P |
Transport Package: |
Protective Film |
Specification: |
960*600*1360 Mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Horizontal |
Control System: |
PLC |
Glass Washing Machine Type: |
Glass Belt Grinding Machine |
Customization: |
Available | Customized Request |

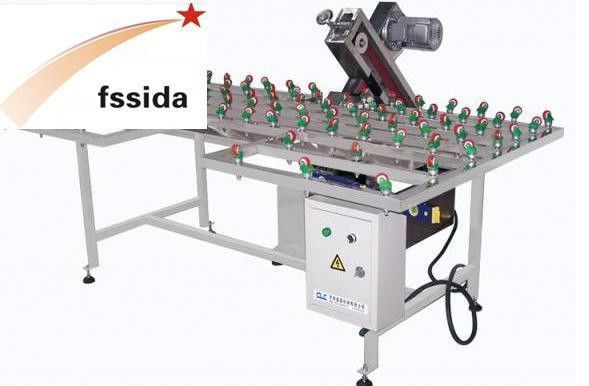

This machine uses two sanding belts to grind the upper and lower sides of the glass at the same time. For coarse grinding of glass. Easy to use, fast and convenient in operation.
| voltage | 380V/50HZ/3Phase |
| Power | 2*0.75kw |
| Max Glass Size | Less than 1500mm |
| Abrasive Belt Speed | 39m/min |
| Abrasive Belt Specification | L2000 *W80mm-100p |
| Machine Size | Machine body size 960*600*1360 |
| Working table size 2200*1200*900mm |
1. Base,Beam,Swing frame,upright all is used by high-quality castings, strong and stable body.
2. ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
3. The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
4. Aluminum scaffolding, timing belt transmission.
5. Stainless steel water tank,there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
6. Electrical appliances used the Tengen or DELIXI brand and so on high-quality product.
7. Rough grinding wheel, finish grinding wheel, polishing wheel: it all use China high-quality wheel and Italy wheel.
8. Full-automatic control, it is suitable for max bevel width market.
9. This machine can accord customer requirement to design.
´ we will assist and maintain communication throughout the process.
