Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
SB1612 |

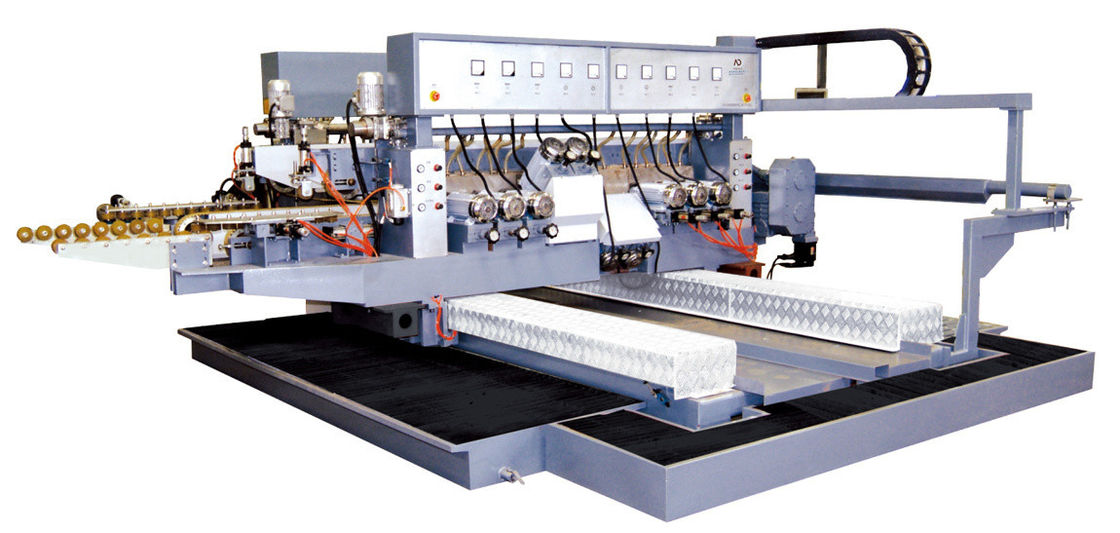

Glass Edging Machine Type: |
Glass Double Edging Machine |
Grinding Head Number: |
16 |
Condition: |
New |
After-sales Service: |
Provide |
Mechanical Text Report: |
Provide |
Voltage: |
380V/50Hz |
Certificate: |
CE |
Video Factory Inspection: |
Provide |
Weigh: |
3600kg |
Max. Workable Width: |
1200mm |
Min. Workable Dimensions: |
200*200mm |
Glass Thickness: |
4-26mm |
Maximum Flat Edging Level: |
3mm |
Maximum Arrising Width: |
2.5mm |
Working Speed: |
0.5~8m/Min(Rough Polishing) |
Arrise Angle: |
45° |
Installed Power: |
44kw |
Compressor Air Consumption: |
1 It/Min |
Pressure: |
6kg/Square Cm |
Transport Package: |
Seaworthy Package |
Specification: |
3600*1600*3000mm |
Trademark: |
FSSIDA |
Origin: |
China |
HS Code: |
8464201000 |
Supply Ability: |
15sets/Month |
Warranty: |
1 Year |
Type: |
Glass Edging Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Horizontal |
Control System: |
PLC |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |
Model NO.: |
SB1612 |
Glass Edging Machine Type: |
Glass Double Edging Machine |
Grinding Head Number: |
16 |
Condition: |
New |
After-sales Service: |
Provide |
Mechanical Text Report: |
Provide |
Voltage: |
380V/50Hz |
Certificate: |
CE |
Video Factory Inspection: |
Provide |
Weigh: |
3600kg |
Max. Workable Width: |
1200mm |
Min. Workable Dimensions: |
200*200mm |
Glass Thickness: |
4-26mm |
Maximum Flat Edging Level: |
3mm |
Maximum Arrising Width: |
2.5mm |
Working Speed: |
0.5~8m/Min(Rough Polishing) |
Arrise Angle: |
45° |
Installed Power: |
44kw |
Compressor Air Consumption: |
1 It/Min |
Pressure: |
6kg/Square Cm |
Transport Package: |
Seaworthy Package |
Specification: |
3600*1600*3000mm |
Trademark: |
FSSIDA |
Origin: |
China |
HS Code: |
8464201000 |
Supply Ability: |
15sets/Month |
Warranty: |
1 Year |
Type: |
Glass Edging Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Horizontal |
Control System: |
PLC |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |
| Item | SB-1612 |
| Spindles | 16 (each side has 8 polishing wheel) |
| Max. glass width | 1200mm |
| Min. glass size | 200*200mm |
| Glass thickness | 4-26mm |
| Maximum flat edging level | 3mm |
| Maximum arrising width | 2.5mm |
| Arrise angle | 45° |
| Working speed | 0.5-8m/min |
| Installed power | 44kw |
| Compressor air consumption | 1 It/min |
| Pressure | 6kg/square cm |
| Overall dimension | 3600x3000x1600mm |
| Weight | 3600kg |
| NO. | Specification |
| 1# | Diamond wheel bottom edge, 150mm |
| 2# | Diamond wheel bottom edge, 150mm |
| 3# | Resin wheel, bottom edge, 150mm |
| 4# | Resin wheel, bottom edge, 130mm |
| 5# | BD wheel for arris, 130mm |
| 6# | Resin wheel for arris, 130mm |
| 7# | BD wheel for arris, 130mm |
| 8# | Yew wheels for bottom, 150mm |
