Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Grinding Head Number: |
11 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installation |
Working Speed: |
0.6-8.0m/Min |
Min.Glass Size: |
80*80*3mm |
Glass Thickness: |
3-20mm |
Power: |
26.3kw |
Transport Package: |
Protective Film |
Specification: |
7500*1000*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE |
Structure: |
Vertical |
Control System: |
PLC |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Customization: |
Available | Customized Request |
Grinding Head Number: |
11 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installation |
Working Speed: |
0.6-8.0m/Min |
Min.Glass Size: |
80*80*3mm |
Glass Thickness: |
3-20mm |
Power: |
26.3kw |
Transport Package: |
Protective Film |
Specification: |
7500*1000*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE |
Structure: |
Vertical |
Control System: |
PLC |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Customization: |
Available | Customized Request |

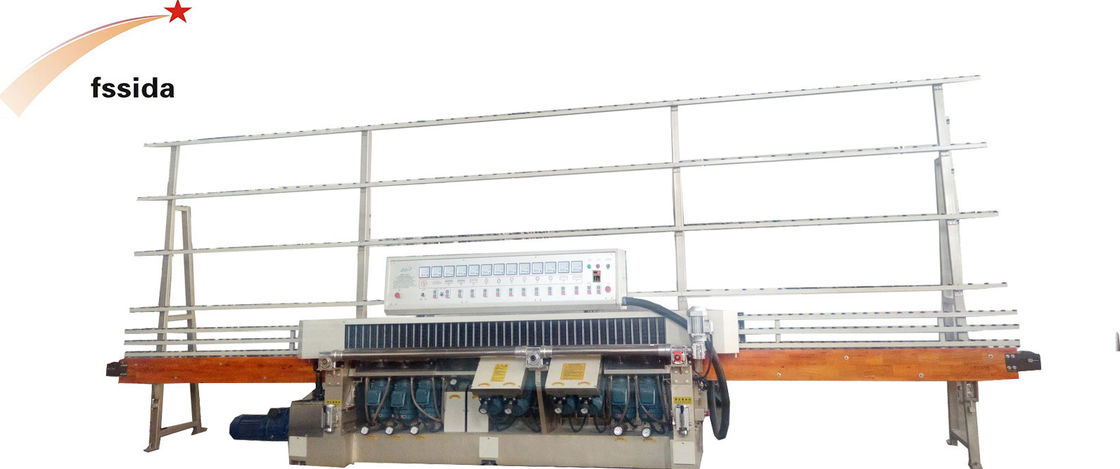

The machine is designed for grinding/polishing bottom edge and 45 degree miter edge of flat glass. Five wheels work the bottom edge and four wheels work the frount arris, two wheels work the back arris,and the whole process of the glass is at one time. Conveyor adopts chain transmitting system which consisting of special stretchy rubber pad. Timing belt transfer glass. Main conveyor working speed can be adjusted through frequence conversion and the speed with digital display. Electrically adjusting the glass thickness and the glass thickness is with digital display.The machine has the characteristic of smooth and steady movement.This machine adopts wool grinding wheels for polishing.
| Motors | 11 |
| Working speed | 0.6-8.0m/min |
| Max.arris width | 2.5mm |
| Min glass size | 80*80*3mm |
| Glass thickness | 3-20mm |
| Power | 26.3kw |
| Dimension | 7500*1000*2600mm |
| Weight | 3600kg |
