Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
ST-9325A |
Grinding Head Number: |
9 |
Condition: |
New |
After-sales Service: |
Online Technology Support |
Usage: |
Polishing Machine Edge |
Processable Glass Type: |
Building Glass |
Quality: |
Excellent |
Style: |
Depend On Demands |
Work Speed: |
0.6-6.0m/Min |
Transport Package: |
Protective Film |
Specification: |
6600*1000*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE |
Structure: |
Vertical |
Control System: |
Industrial Computer |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Customization: |
Available | Customized Request |
Model NO.: |
ST-9325A |
Grinding Head Number: |
9 |
Condition: |
New |
After-sales Service: |
Online Technology Support |
Usage: |
Polishing Machine Edge |
Processable Glass Type: |
Building Glass |
Quality: |
Excellent |
Style: |
Depend On Demands |
Work Speed: |
0.6-6.0m/Min |
Transport Package: |
Protective Film |
Specification: |
6600*1000*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Edging Machine |
Certification: |
CE |
Structure: |
Vertical |
Control System: |
Industrial Computer |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Customization: |
Available | Customized Request |

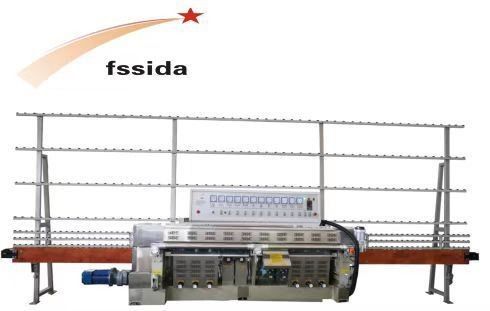

The machine is glass 9 motors straight line edging machine, used for grinding and polishing the bottom edge
and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The
machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the
glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration
during grinding. The main transmission is frequency conversion speed regulation. The special part is the
input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by
rotate the rotation handle ,and the grind amount digital display.
Grinding wheel introduction:
| 1#:Diamond wheel 150*12*8*8 100# | 2#:Diamond wheel 150*12*8*8 240# | 3#:Resin wheel 130*12*15*10 240# |
| 4#:Polishing wheel 130*60*35 | 5#:Resin wheel 130*12*15*12 240# | 6#:Polishing wheel 130*60*35 |
| 7#:Resin wheel 150*12*15*10 240# | 8#:Polishing wheel 150*70*40 | 9#:Polishing wheel 150*70*35 |
| Motors | Working speed | Glass size | Glass thickness |
| 9 | 0.6-6.0m/min | 60mm or more | 3-20mm |
| Power | Weight | Dimension | Condition |
| 18.75kw | 2800kg | 6600*1000*2600mm | New |
Foshan Star Glass Machinery Co.,Ltd
Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized
in design, manufacture, selling, after sales service and maintenance. Our products include glass
straight-line edger machine, glass straight-line beveling machine,glass drilling machine glass
tempering machine etc. These machines have been widely used in various fields such as
construction, furniture, art craft, KTV and wall decoration, etc. Having worked in this field for more
than 20 years, our engineers are qualified with rich experience and technical skills.Fssida persists
in the principle of "surviving on quality and developing on innovation".
√ One year guarantee for the machine,except the consumable parts.
√ 24 hours technical support by e-mail/Online chatting app.
√ English control page, manual and detailed operation Videos.
