Product Details
Place of Origin: China
Brand Name: Foshan Star
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
9325 |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Grinding Head Number: |
9 |
Condition: |
New |
After-sales Service: |
On-Site Installation Or Remote Assistance |
Machine Name: |
Straight Line Glass Edging Machine |
Motors Number: |
9-12 |
Color: |
Customizable |
Machine Model: |
9325 |
After-Sale Service: |
On-Site Installation Or Remote Assistance |
Machine Size: |
6600*1000*2600mm |
Voltage: |
Customizable |
Fuction: |
Glass Edge Grinding And Polish |
Logo: |
Fssida |
Machine Quality: |
High Quality |
Producer: |
Original Manufacturer |
Weight: |
3000kgs |
Transport Package: |
Protective Film Tightly Packed |
Specification: |
6600*1000*2600MM |
Trademark: |
FSSIDA |
Origin: |
China |
HS Code: |
8464201000 |
Supply Ability: |
200/Year |
Warranty: |
2 Years |
Type: |
Glass Tempering Furnace |
Certification: |
CE, ISO |
Structure: |
Horizontal |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |
Model NO.: |
9325 |
Glass Edging Machine Type: |
Glass Straight Edging Machine |
Grinding Head Number: |
9 |
Condition: |
New |
After-sales Service: |
On-Site Installation Or Remote Assistance |
Machine Name: |
Straight Line Glass Edging Machine |
Motors Number: |
9-12 |
Color: |
Customizable |
Machine Model: |
9325 |
After-Sale Service: |
On-Site Installation Or Remote Assistance |
Machine Size: |
6600*1000*2600mm |
Voltage: |
Customizable |
Fuction: |
Glass Edge Grinding And Polish |
Logo: |
Fssida |
Machine Quality: |
High Quality |
Producer: |
Original Manufacturer |
Weight: |
3000kgs |
Transport Package: |
Protective Film Tightly Packed |
Specification: |
6600*1000*2600MM |
Trademark: |
FSSIDA |
Origin: |
China |
HS Code: |
8464201000 |
Supply Ability: |
200/Year |
Warranty: |
2 Years |
Type: |
Glass Tempering Furnace |
Certification: |
CE, ISO |
Structure: |
Horizontal |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |

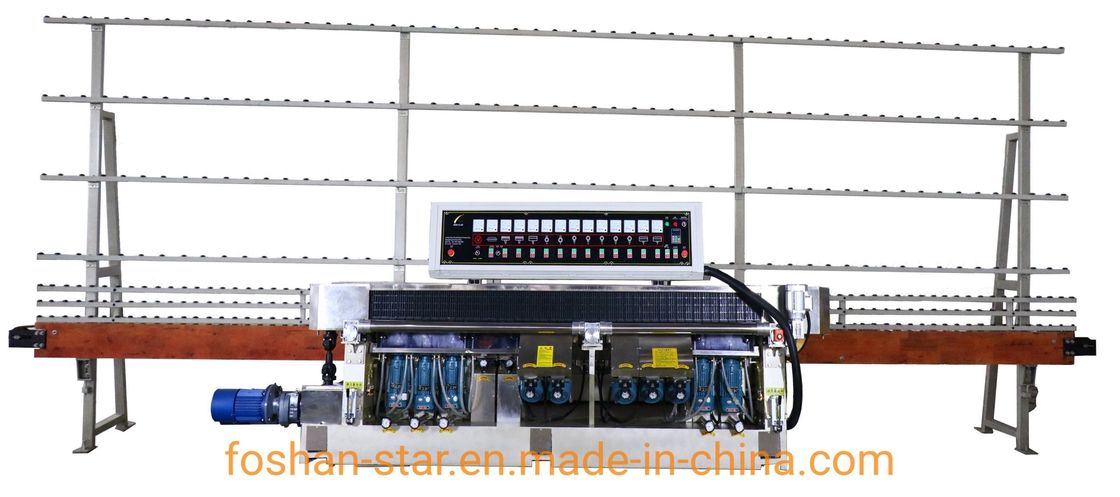

The machine is glass 9 motors straight line edging machine,, used for grinding and polishing the bottom edge and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation.
The special part is the input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.
Wheels: 9 .
working speed: 0.6-6.0m/min
Max. arris width: 2.5mm
Min. glass size: 60mm
Glass thickness: 3-20mm
Total power: 18.75kw
Total dimension: 6.6x1.0x2.6m
Total weight: 2800kg
