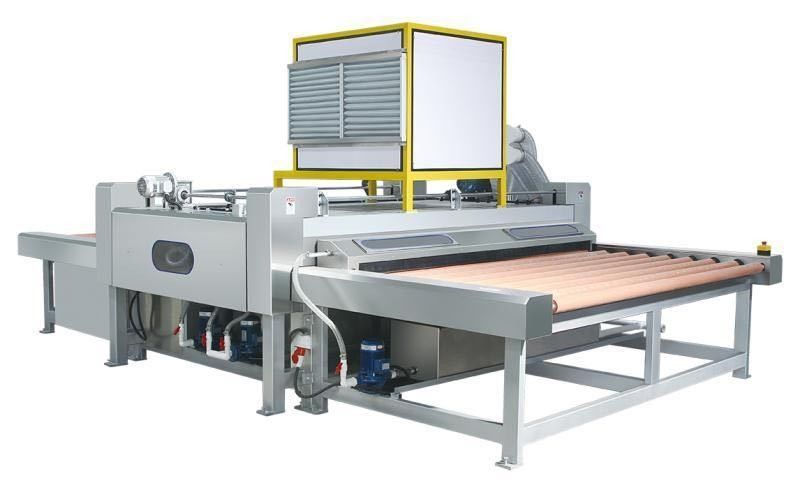

Horizontal Flat Glass Washing Machine with PLC Control System and CE Certification



This machine use for glass clean and drying.
1.Main drive is gear drive, motor speed is controlled by frequency inverter, digital display show speed and glass thickness. Roller Brush are drove by upper and lower motors with separate belt, which has smooth speed and long service life.

2.Metal plates of washing part and parts which contacts with water are made of stainless steel.

3. All transmitting rubber rollers of the machine are vulcanized rubber (They are forbidden to contact with acidic liquids.).

4. Washing part and drying part can be rose up to 350mm as a whole, which is convenient to wash and maintained.

5. The machine has three pairs of brushes (Φ150mm). When washing Low-E Glass:The  upper two hard brushes can be risen up by cylinder and just leave one soft brush, this will avoid damaging surface of reflective glass, which can designed to wash low-e glass, ordinary reflective glass and sunshine reflective glass.

6. There is air filter in entering-wind room of blower. The drying effect is better with high airflow. The whole blower is installed on the workshop, and it can rise up with washing and drying parts, which occupy little space.

7. The machine has two pairs of air knife, which have large wind and good drying effect.

8.Metal plates of other parts are painted with top-grade machine paint.

Parameters


Item	QX2000
The maximum glass width:	2000 mm(width)
The minimum glass size	400mm×400mm
Glass thickness range	3mm-25mm digital readout
Roller brush:	3 pair
Working speed	Thickness of glass is less than 5mm, Vmax= 7m/min Thickness of glass is 8mm to 12mm, V<= 3m/min Thickness of glass is 15mm-19mm, V= 2m/min
Way for changing speed of main drive:	variable frequency speed control;
Working table height	880mm
Total power	25kw
External dimension	5000*3000*2700
Weight:	3350kg

Sea worthy packing
