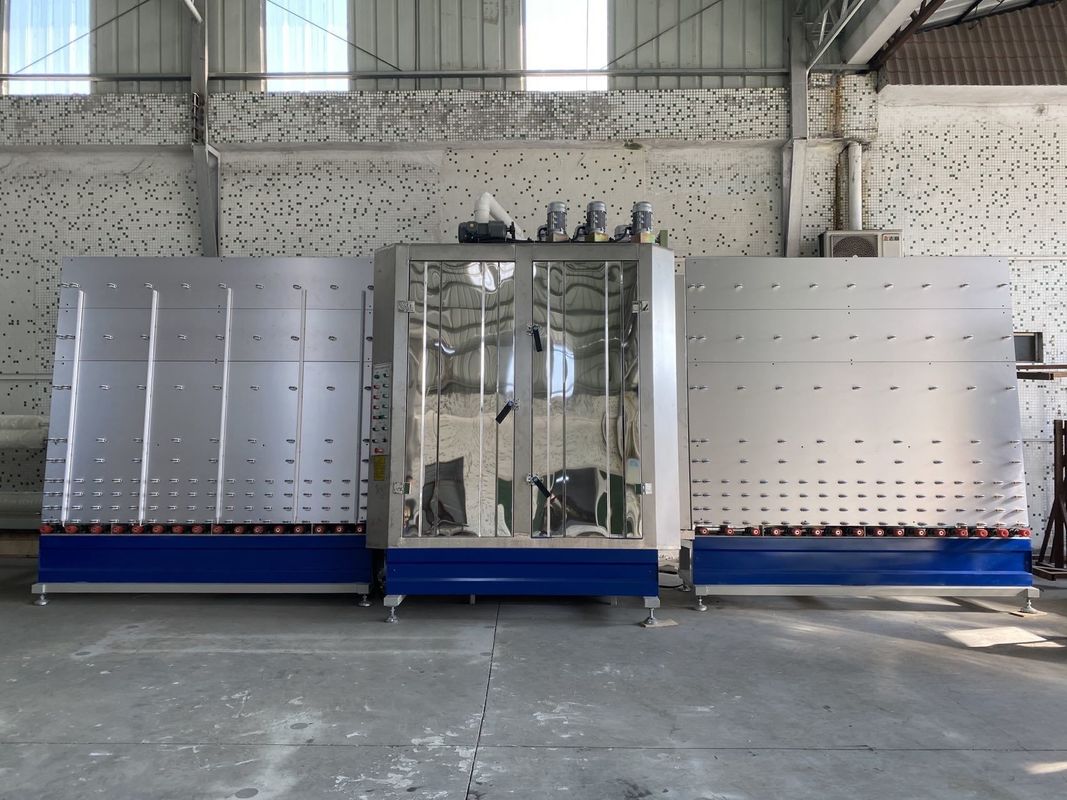

Fully Automatic Vertical Double-Glazed Production Line Customized Request

Name: Fully Automatic Vertical Double-Glazed Production Line Customized Request
Brand: Fully Automatic Vertical Double-Glazed Production Line Customized Request
SKU: Fully Automatic Vertical Double-Glazed Production Line Customized Request
Rating: 4.8 (146 reviews)

Product Details

Place of Origin: China

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	1600	Glass Edging Machine Type:	No
Grinding Head Number:	No	Condition:	New
After-sales Service:	One Year	Transport Package:	Protective Film
Trademark:	Fssida	Origin:	China
HS Code:	8464201000	Supply Ability:	100sets/Month
Warranty:	One Year	Type:	No
Certification:	CE, ISO, FDA, UR, PCI, PDA	Structure:	Horizontal
Control System:	No	Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Model NO.:	1600
Glass Edging Machine Type:	No
Grinding Head Number:	No
Condition:	New
After-sales Service:	One Year
Transport Package:	Protective Film
Trademark:	Fssida
Origin:	China
HS Code:	8464201000
Supply Ability:	100sets/Month
Warranty:	One Year
Type:	No
Certification:	CE, ISO, FDA, UR, PCI, PDA
Structure:	Horizontal
Control System:	No
Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Fully Automatic Vertical Double-Glazed Production Line Customized Request

Structural features:

1. This machine adopts the world's leading technology:
2. The sheet metal of the parts in contact with water in the cleaning part are all made of stainless steel. The cleaning box is integrally welded by thick stainless steel, with high strength and no deformation.
3. (Three pairs of brushes configuration) six 150mm diameter high temperature resistant silk brushes + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles with cylinder lifting, which can wash LOW-E glass.
4. Each brush is driven by a motor to ensure more stable transmission of the brush.
5. The stainless steel spring can automatically adjust the thickness of the cleaning glass from 3-20mm.
6. The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials, which will not rust after long-term use and are easy to maintain.
7. Two pairs of aluminum profile air knives are equipped with high wind power and good air drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).
Technical parameter:

Max Glass height	1600mm
Min Glass size	400mm×400mm
Glass thickness	3mm-19mm
Working speed	1~10m/min
Total power	19KW
Voltage	380V/50Hz
Machine size	7200×2500×2300
Weight	2500KG

https://foshan-star.en.made-in-china.com/
We make glass tempering furnace, glass edging machine, glass cutting machine, glass washing machine, glass drilling machine. Our company has more than 15 years.we have perfect after sales service and technology.contact with me if you have any request!
