Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
ST1200 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installation |
Usage: |
Washing Tempering Glass |
Feature: |
Save Space |
Appliance: |
Glass Factory |
Glass Thickness: |
3-15mm |
Weight: |
1000kg |
Transport Package: |
Protective Film |
Specification: |
3300x1200x1100mm |
Trademark: |
Fssida |
Origin: |
China |
HS Code: |
8464901900 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Washing And Drying Machine |
Certification: |
CE |
Structure: |
Horizontal |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |
Model NO.: |
ST1200 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installation |
Usage: |
Washing Tempering Glass |
Feature: |
Save Space |
Appliance: |
Glass Factory |
Glass Thickness: |
3-15mm |
Weight: |
1000kg |
Transport Package: |
Protective Film |
Specification: |
3300x1200x1100mm |
Trademark: |
Fssida |
Origin: |
China |
HS Code: |
8464901900 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
One Year |
Type: |
Glass Washing And Drying Machine |
Certification: |
CE |
Structure: |
Horizontal |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Horizontal Glass Washing Machine |
Customization: |
Available | Customized Request |

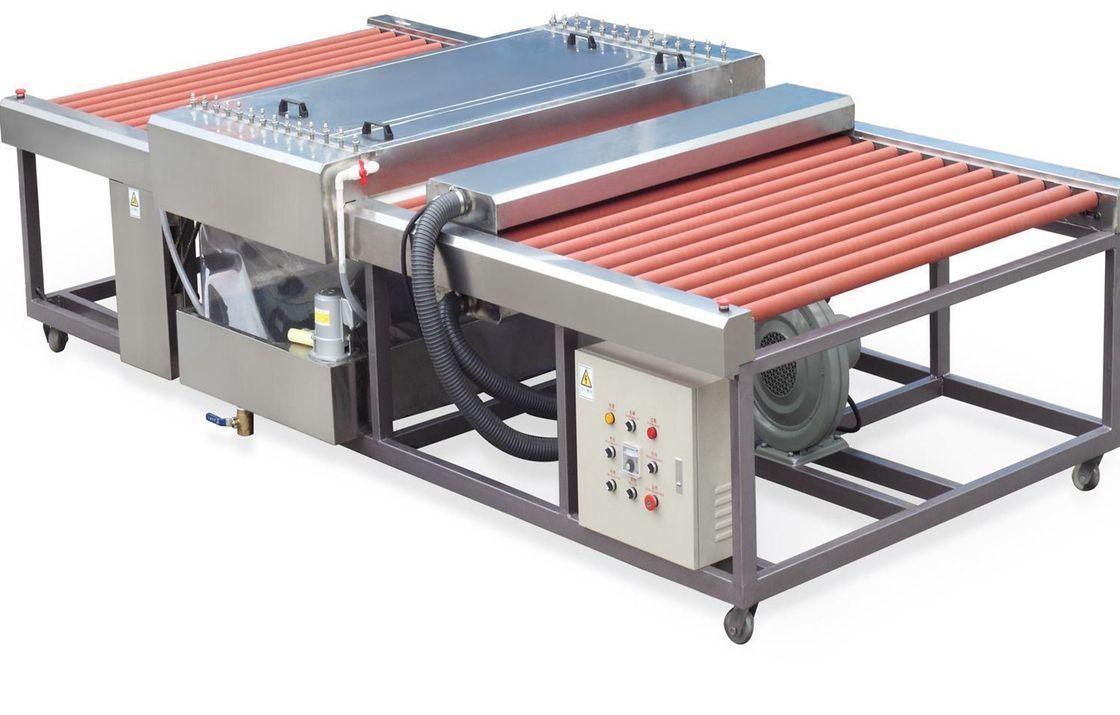

The washing machine is used for washing and drying of 3-15mm thickness flat glass. It adopts the horizontal structure, the transmission is smooth, efficient and safe.Simple work flow,glass conveyed by the roller then enter into the feeding part,smooth delivery to the washing part and drying part,then finish and come out.Transmit speed is controlled by variable motor,machine must power on,when adjust the speed;the temperature of the hot air can be adjusted as client demand.This series of glass washing machines are suitable for cleaning flat glass. Adopt chain drive and stepless speed variator as main conveyor.The cleaning effect is very good and easy to operate.
Technical Parameter
| Specification | Data |
| Speed | 0.75-3.5m/min |
| Min. Glass size | 90x90mm |
| Glass thickness | 3-15mm |
| Max width of glass | 1150mm |
| Voltage/frequency | 380v/50hz(to order) |
| Power | 10kw |
| Weight | 1000kg |
| Overall size | 3300x1200x1100mm |
Workroom of glass washing machine
Structure
Brushes&Sponge
Control electric box
Packing and shipping
Ship by FCL
Ship by LCL
