Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
ST261E |
Grinding Head Number: |
12 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installtion |
Working Speed: |
0.6-6.0m/Min |
Beveling Angle: |
0-25 Degree |
Max.Beveling Width: |
38mm |
Min Glass Size: |
80*80*3mm |
Glass Thickness: |
3-12mm |
Power: |
28kw |
Weight: |
5500kg |
Transport Package: |
Protective Film |
Specification: |
7700*1210*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
1year |
Type: |
Glass Beveling Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Vertical |
Control System: |
PLC |
Glass Edging Machine Type: |
Glass Beveling Machine |
Customization: |
Available | Customized Request |
Model NO.: |
ST261E |
Grinding Head Number: |
12 |
Condition: |
New |
After-sales Service: |
Remotely Guided Installtion |
Working Speed: |
0.6-6.0m/Min |
Beveling Angle: |
0-25 Degree |
Max.Beveling Width: |
38mm |
Min Glass Size: |
80*80*3mm |
Glass Thickness: |
3-12mm |
Power: |
28kw |
Weight: |
5500kg |
Transport Package: |
Protective Film |
Specification: |
7700*1210*2600mm |
Trademark: |
Fssida |
Origin: |
Foshan |
HS Code: |
8464201000 |
Supply Ability: |
2 Sets/Mouth |
Warranty: |
1year |
Type: |
Glass Beveling Machine |
Certification: |
CE, ISO, FDA, UR, PCI, PDA |
Structure: |
Vertical |
Control System: |
PLC |
Glass Edging Machine Type: |
Glass Beveling Machine |
Customization: |
Available | Customized Request |

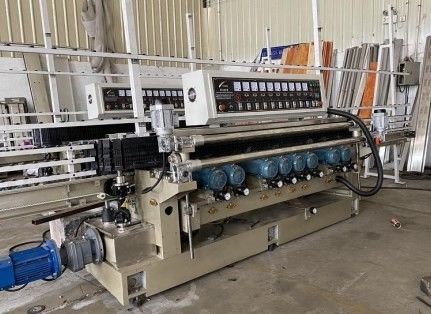

Glass straight line beveling machine for floating tempering glass processing machine
This machine is designed with PLC system,which is mainly for grinding/polishing glass bevel edge, with bottom edge grinding.And it also has the function for grinding flat edge of the glass. Structure guarantee glass is stably moved.This machine is easy to operate and have a durable function.
Feature
1.Conveyors use big chain transmitting system, and anti-friction rubber pads with NO.40 forging sheet steel bone.
2. The 9 wheels for grinding bevelling edge, 1 wheel for grinding front arris, 1 wheel for grinding back arris, 1 wheel for grining flat edge.
3. Timing belt transfer glass, which has a stable transportation.
4. Grinding wheels are driven by high precision CDQC motors.
Technical Parameters
| Motors | 12 |
| Working speed | 0.6-6.0m/min |
| Bevel angle | 0°-25° |
| Max.bevel width | 38mm |
| Min.bevel size | 80×80×3mm |
| Glass thickness | 3-12mm |
| Total power | 28kg |
| Total weight | 5500kg |
Certificate
Company
Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized
in design, manufacture, selling, after sales service and maintenance. Our products include glass
straight-line edger machine, glass straight-line beveling machine, glass drilling machine glass
tempering machine etc. These machines have been widely used in various fields such as construction,
furniture, art craft, KTV and wall decoration, etc.
Having worked in this field for more than 20 years, our engineers are qualified with rich experience
and technical skills. Fssida persists in the principle of "surviving on quality and developing on innovation".
