Glass Cutting Machine with One Year After-sales Service CNC Automatic Cutting Line

Name: Glass Cutting Machine with One Year After-sales Service CNC Automatic Cutting Line
Brand: Glass Cutting Machine with One Year After-sales Service CNC Automatic Cutting Line
SKU: Glass Cutting Machine with One Year After-sales Service CNC Automatic Cutting Line
Rating: 4.8 (136 reviews)

Product Details

Place of Origin: China

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Product Details

Product Description

Highlight:

Glass Edging Machine Type:	No	Grinding Head Number:	9
Condition:	New	After-sales Service:	One Year
Transport Package:	Protective Film	Trademark:	Fssida
Origin:	China	HS Code:	8464201000
Supply Ability:	100sets/Month	Warranty:	One Year
Type:	Glass Cutting Machine	Certification:	CE
Structure:	Horizontal	Control System:	PLC
Glass Washing Machine Type:	No	Customization:	Available \| Customized Request

Glass Edging Machine Type:	No
Grinding Head Number:	9
Condition:	New
After-sales Service:	One Year
Transport Package:	Protective Film
Trademark:	Fssida
Origin:	China
HS Code:	8464201000
Supply Ability:	100sets/Month
Warranty:	One Year
Type:	Glass Cutting Machine
Certification:	CE
Structure:	Horizontal
Control System:	PLC
Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

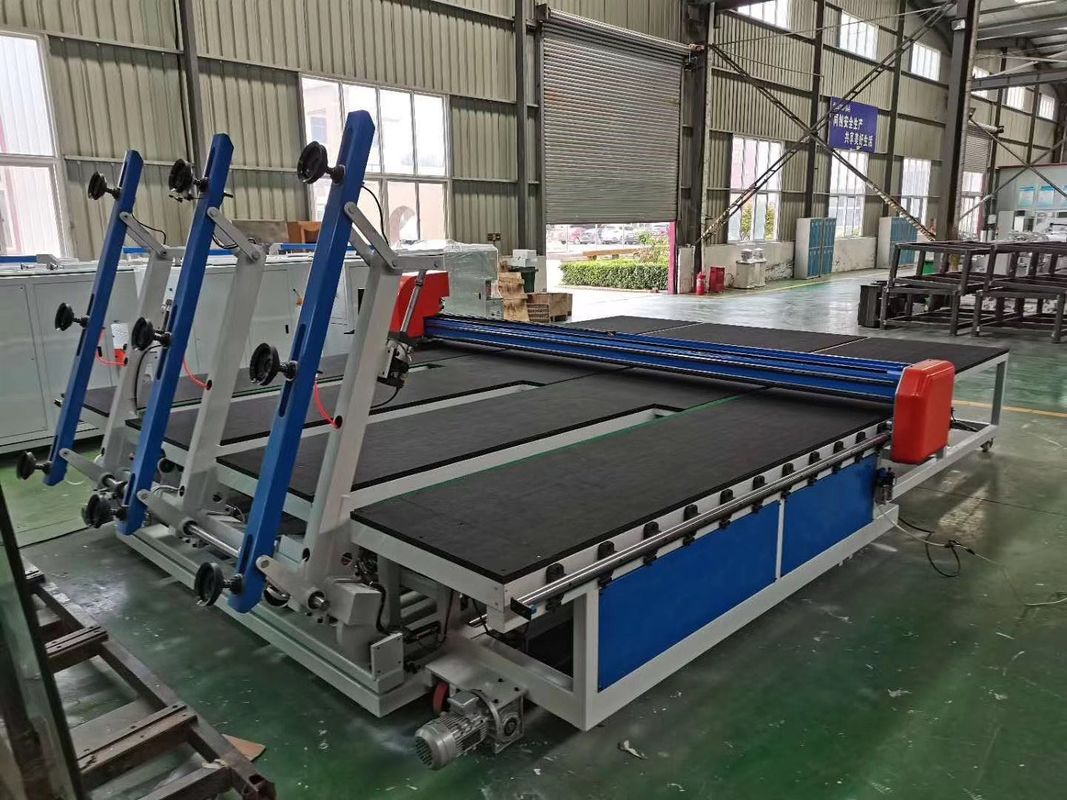

Glass Cutting Machine with One Year After-sales Service CNC Automatic Cutting Line

This machine can realize forward, backward, left, right and other actions by remote control switch under manual function state.Thus, it can be flexibly moved to the required position on the flat floor of the workshop.The suction cup can be manually controlled.
The machine is equipped with cutting parking system, when the suction cup leaves the original position, the machine can be moved.The parking system automatically operates when the glass sucker is in its original position.To ensure the high speed cutting state, the stability of the whole machine.
Adjust the position of the one-piece cutting machine and the glass frame. Press one button to automatically load the piece under the automatic state function.Under this function, the glass suction cup will automatically rise to the desired position, and the whole machine will move forward automatically. After touching the glass, the glass will be absorbed automatically by the vacuum suction cup (which can automatically find the correct position of the glass suction cup).The suction cup will be automatically lifted after absorbing the glass, and then the whole machine will move back to the set position. The suction cup will automatically swing down, and the glass will be placed on the cutting table smoothly.
By using the computer of glass cutting machine, glass cutting typesetting can be optimized, so as to optimize the utilization rate of glass and improve the economy.
Open cutting software can drive cutting machine to achieve automatic cutting.
When the cutting is finished, open the fan of the cutting table and use air float to slide the glass easily. Step on the foot switch and use pneumatic break bar (ejector bar) to separate the large plate glass easily.
To sum up, automatic CNC glass cutting machine, with automatic loading, computer optimization typesetting, CNC automatic cutting, air flotation, pneumatic breaking, automatic parking and other functions.The machine is flexible and easy to operate, safe and reliable.The system solves the risk of manual operation, reduces labor cost and saves labor.Improve the quality of cutting precision, high production efficiency and save raw materials.Single class can cut 1000-1500 square meters of glass!
This machine adopts the remote control operation to automatically take the film, the whole body can move around freely on the solid and flat ground, which can realize the one-button automatic film loading operation.The machine has the advantages of small occupation area, simple operation, safety and reliability.Suitable for use by small limited glass manufacturers.
The completion of remote control, reduce the use of personnel and labor force, eliminate industrial injury safety risks.Cutting automatic optimization to achieve labor and material saving.The cutting speed is 180 meters per second, which guarantees the cutting quality and improves the production efficiency.

Equipment technical parameters:

Maximum machining size	*3.82.6m**
Maximum cutting speed	180m/min
Maximum cutting accuracy	±0.2mm
Input power	14.5kw
Overall dimensions	*420032501500mm(table900mm)+40002700900mm*

Device Configuration:

No	ITEM	BRAND
1	Industrial computer	TAIWAN
2	Multiply axis digital motion controller
3	Laser scanning locator	Panasonic Japan
4	Servo system	JAPAN NATIONAL
5	Liner guideway	HWIN CHINA TAIWAN
6	gear rack	LEADRACK()
7	knife flywheel	German
8	Shift knob	Schneider
9	Ac Contactor circuit breaker	Schneider
10	Proportional valve kit	SMC
11	Optoelectronic switch	Omron
12	PLC	TECO TAIWAN
13	frequency changer	TECO TAIWAN
14	Vacuum pressure switch	SMC

https://foshan-star.en.made-in-china.com/

We make glass tempering furnace, glass edging machine, glass cutting machine, glass washing machine, glass drilling machine. Our company has more than 15 years.we have perfect after sales service and technology.contact with me if you have any request!
