Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification

Name: Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification
Brand: Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification
SKU: Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification
Rating: 4.7 (122 reviews)

Product Details

Place of Origin: China

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	ST-CNC-4028	Glass Edging Machine Type:	No
Grinding Head Number:	No	Condition:	New
After-sales Service:	One Year	Transport Package:	Protective Film
Trademark:	Fssida	Origin:	China
HS Code:	8464201000	Supply Ability:	100sets/Month
Warranty:	One Year	Type:	Glass Cutting Machine
Certification:	CE	Structure:	Horizontal
Control System:	PLC	Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Model NO.:	ST-CNC-4028
Glass Edging Machine Type:	No
Grinding Head Number:	No
Condition:	New
After-sales Service:	One Year
Transport Package:	Protective Film
Trademark:	Fssida
Origin:	China
HS Code:	8464201000
Supply Ability:	100sets/Month
Warranty:	One Year
Type:	Glass Cutting Machine
Certification:	CE
Structure:	Horizontal
Control System:	PLC
Glass Washing Machine Type:	No
Customization:	Available \| Customized Request

Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification

Feature:

High automation
Optimize software, save glass material
High speed and high work efficiency
Any shape available

Introduction
The line mainly contains three sections:

ST-QSP-4028 Automatic Glass Loading Table
ST-CNC-4028 CNC Automatic Shaped Glass Cutting Machine
ST-BQZ-4028 Glass Breaking Table

ST-QSP-4028 Automatic Glass Loading Table :

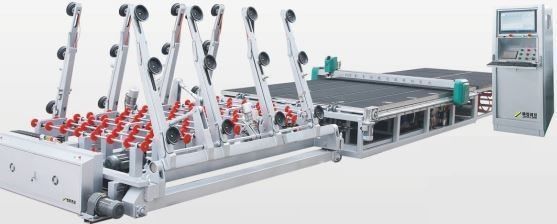

St-CNC-4028 CNC Automatic Shaped Glass Cutting Line

Characteristic

Mn bridge steel (Q345A ), perfect surface treatment
High quality imported NBR material vacuum chuck, Japan SMC vacuum switch
Touch screen operation
A key reset function
Alarm system for safety and wrong operation
Flat four-bar linkage lift structure (much more stable than guide screw lift)
High precision and wear-resisting gear and chain, full-enclosed chain
Imported PU material wheels
Germany technology vacuum pump 1.5Kw

Mechanical parts

Name	Brand
Transmission Motor	CBG (TaiWan)
Vacuum Pump	JoySun (Shanghai)

Electric parts:

Name	Brand
PLC	OMRON JAPAN OR SIMENS GERMANY
Touch screen	LG
Converter	TECO
Solenoid valve	AIRTAC

ST-CNC-4028 CNC Automatic Shaped Glass Cutting Machine :

Characteristic

Mn bridge steel (Q345A ), perfect surface treatment
Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
Cutting pressure automatic adjusted according to glass thickness
Cutter head 360 degree rotating
Climbing wheels on the cutter head for protecting the cutter assembly and the glass
Water proof surface panel, stainless steel side covered, water and deformation resisting
High quality felt, perfect level, anti-static
Automatic side locating system, pneumatic mechanical and photoelectric joint locating
Self-lubricating guide rail
Air filter for keeping the oil clean
Air float and belt transmit
Linear guide rail
Automatic oiling for transmission system

Mechanical parts

Name	Brand
Table surface panel	High-density waterproof panel, roughness≤±0.20mm/m (Imported material)
Rack and rail	ALTANTA GEMERGY
Belt/band pulley	KONYEAR
Cutter wheels and holder	BOHLE GEMANY

Electric parts

Name	Brand
CNC program	Galil (USA)/Optima(Italy)
Optimized software	Guiyou (Best China brand)/ Optima(Italy)
Relay	OMRON JAPAN
Terminal	WAGO GERMANY
Air-break switch/low-voltage apparatus/button	MOELLER GERMANY
Servo motor	YASKAWA JAPAN
Proportioning solenoid valve	SMC JAPAN
A.C. contactor	SCHNERDER
Laser Sensor	PANASONIC
Position switch	OMRON
Frequency converter	DELTA
Pneumatic components	AIRTAC

Technical parameter

Model	Max. glass size	Thickness	Dimensions (LWH)	Max. speed	Air pressure
CNC-4028	4000*2800mm	3~19mm	*532031001300mm*	160m/min	0.6~0.8MPa

ST-BQZ-4028 Glass Breaking Table :

Air float function
High density table panel
Breaking bar: 1+2

Complete Line Technical Parameter:

Model	Max. glass size	Thickness	Dimensions (LWH)	Max. speed	Air pressure
CNC-2620	2440*1830mm	2~19mm	1100030001300mm	150m/min	0.6~0.8MPa
CNC-4028	4000*2800mm	3~19mm	*1450036001300mm*	160m/min	0.6~0.8MPa
CNC-5024	5000X2440	3-19MM	*1550035001300*	160m/min	160m/min
CNC-5033	5000*3300mm	3~19mm	1700042121300mm	160m/min	0.6~0.8MPa
CNC-6033	6000*3300mm	3~19mm	1998042121300mm	160m/min	0.6~0.8MPa

We make glass tempering furnace, glass edging machine, glass cutting machine, glass washing machine, glass drilling machine. Our company has more than 15 years.we have perfect after sales service and technology.contact with me if you have any request!
