Product Details
Place of Origin: China
Certification: ISO 9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Model NO.: |
GM-ZKX2535 |
Condition: |
New |
After-sales Service: |
Oversea Installation Team |
Transport Package: |
Protective Film |
Specification: |
Can Customize Different Size Specifications |
Trademark: |
GM |
Origin: |
Foshan, Guangdong, China |
HS Code: |
84752990 |
Supply Ability: |
500 |
Warranty: |
1 Year |
Type: |

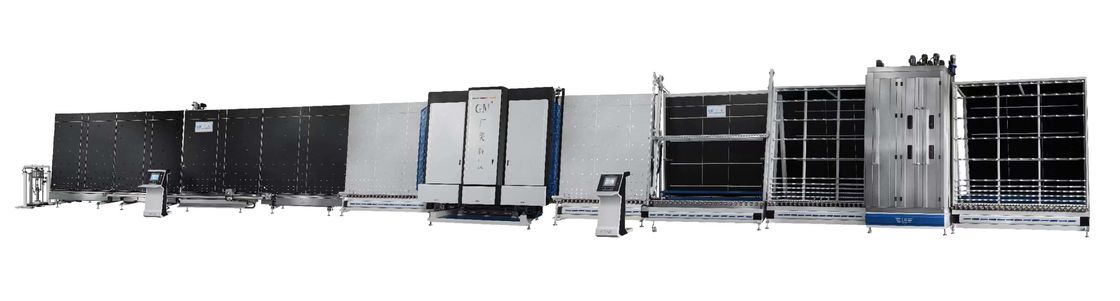

Insulating Glass Production Line |
Certification: |
CE, ISO |
Structure: |
Vertical |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Vertical Glass Washing Machine |
Customization: |
Available | Customized Request |
Model NO.: |
GM-ZKX2535 |
Condition: |
New |
After-sales Service: |
Oversea Installation Team |
Transport Package: |
Protective Film |
Specification: |
Can Customize Different Size Specifications |
Trademark: |
GM |
Origin: |
Foshan, Guangdong, China |
HS Code: |
84752990 |
Supply Ability: |
500 |
Warranty: |
1 Year |
Type: |
Insulating Glass Production Line |
Certification: |
CE, ISO |
Structure: |
Vertical |
Control System: |
Industrial Computer |
Glass Washing Machine Type: |
Vertical Glass Washing Machine |
Customization: |
Available | Customized Request |
| Item | Parameter |
| Dimensions | 38000mmx2000mmX4200mm |
| Max glass size can make | 3300mmx6000mm |
| The largest inflatable glass that can be processed | 3300mmx6000mm |
| Minimum glass size that can be processed | 350mm x 500mm |
| Singe glass thickness can wash | 4mm -40mm |
| Minimum glass size that can be processed | 15mm - 60mm |
| Glass shape | Same size rectangular |
| Best cleaning speed | 4 -8m/min |
| Transmission speed | 0-30m/min |
| Maximum glass weight | 250kg/m |
| control method | Touch screen |
| Brush | 6 PCS |
| Power | 35kw , 380V (50HZ) |
External wiring entrance |
10M2 wire,63A circuit breaker (5 wires) |
| Item | Data |
Max glass size can wash |
3300mm x6000mm |
Minimum glass size that can be processed |
350mm x 600mm |
| Singel glass thickness can wash | 4mm - 18mm |
| Glass shape | Flat glass |
| Best cleaning speed | 4 -8m/min |
| Transmission speed | 0-30m/min |
| Maximum glass weight | 250kg/m |
| control method | Touch screen |
| Washing machine Brush | 6 pcs |
| Motors for brush | 6 motors |
| conveyor motor | 2( one on left ,one one right) |
| Power | 35kw , 380V (50HZ) |
| water filter | 2 tanks |
External wiring entrance |
10 MM2 wire 63A circuit breaker (5 wires) |
| Item | Data |
| Machine dimensions | 13000mmx2000mmx4300mm |
| Max glass size | 3300mm x 6000mm |
| Min glass size | 300mm x 350mm |
| Sealant thickness | 2mm -15mm |
| Insulating glass finished product thickness | 12mm - 60mm |
| Singe glass thickness | 3-15mm |
| Sealing speed | (6A spacer,5mm sealant)4 - 40m/min |
| Transmission speed | Chain |
| Load weight | 3000kg/m |
| Sealing ambient temperature | 15-40ºC |
| Control method | Touch screen |
| Gas source | 6Bar, 2.0Ms/min |
| Power | 20kw , 380V (50HZ) |
External wiring entrance |
10 MM2wires 63A breaker(5 wires) |
